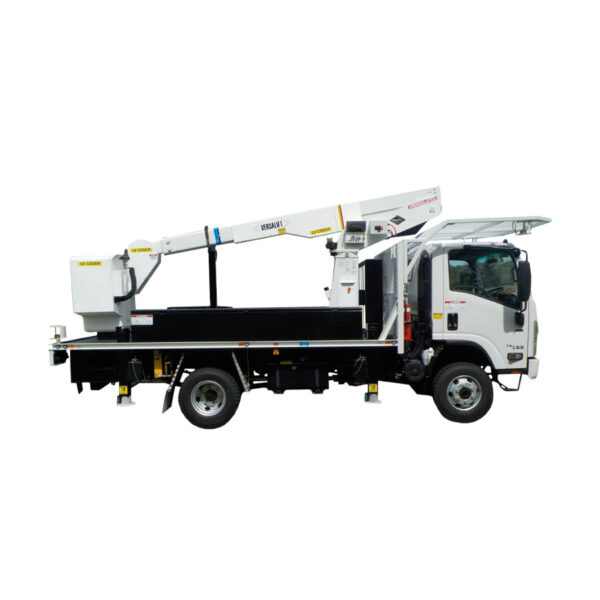

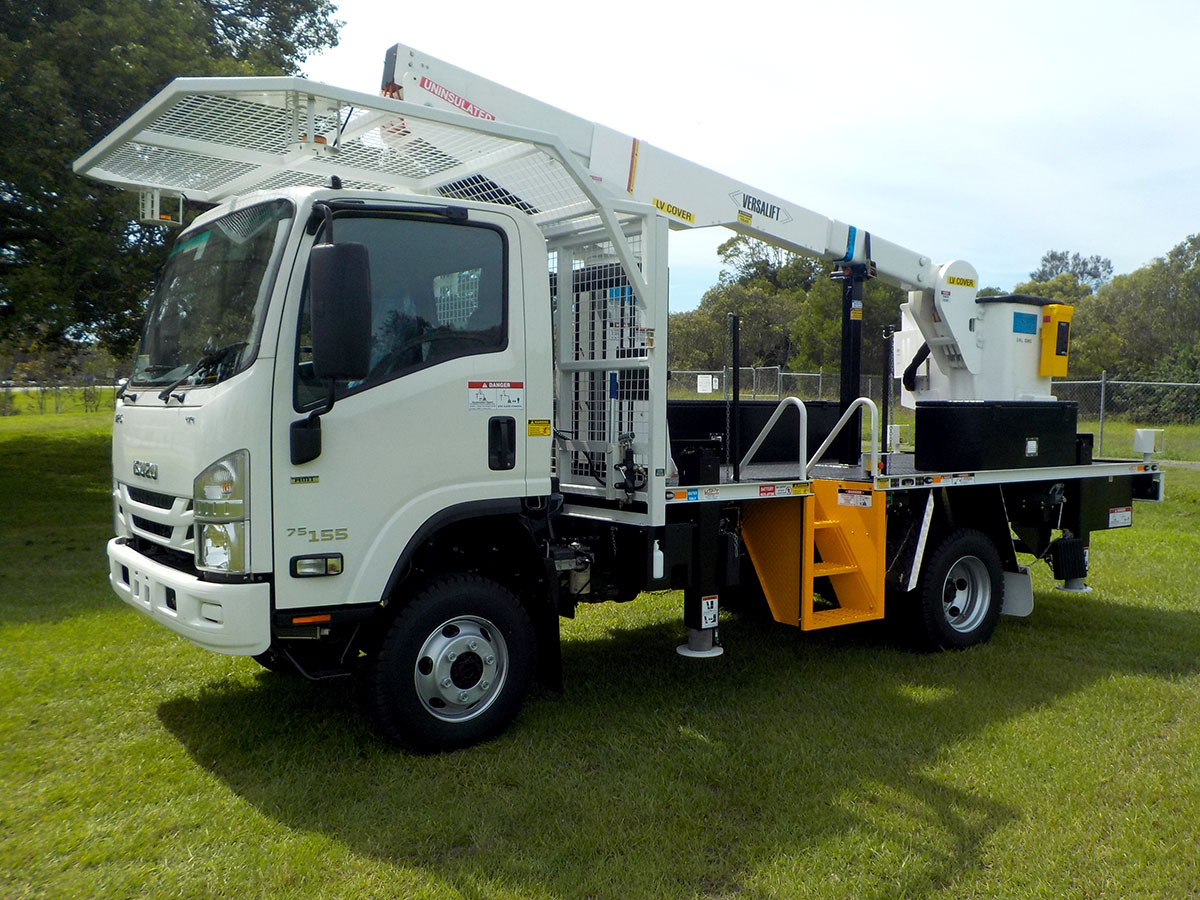

The TEL models, with telescoping inner boom, are ideal for working in urban streets. Torsion bars are fitted to the vehicle for operating stability without outriggers. This gives the vehicle the ability to park and work – thus reducing the delays and cost of traffic control.
Its compliance with AS1418.10 – 2011 to 66kV offers safety for operators close to high and low voltage powerlines.
| Working Height: | 10.4m |
| Height to bottom of bucket: | 8.86m |
| Horizontal Outreach: | 7.14m |
| Bucket Capacity: | ATB Chartered |
| Crane Jib: | 660kg |
| Bucket Dimensions: | 0.61×0.61×1.07m |
| Basket Rotation: | -90 deg +90 deg |
| Insulation Rating: | 5kv/5kv |
| Minimum GVM: | 6,500kg |
| Style |
EWP |
|---|---|
| Size |
Light Duty |
| Height |
8m to 13m |
| Condition |
New |
