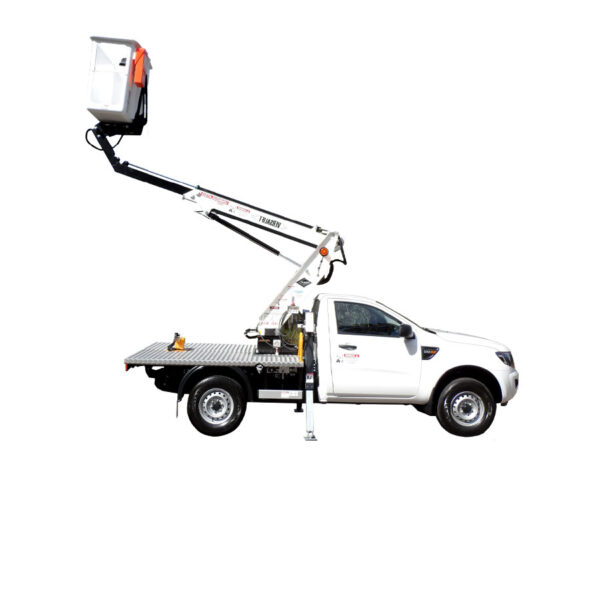

The LT23-TB is an Elevated Work Platform for lighter commercial vehicles, the low weight design allows better access in urban areas and in weight restricted streets. This gives the vehicle the ability to park and work – thus reducing the delays and cost of traffic control.
The LT23-TB is designed for chassis up to 3500kg GVM.
| Working Height: | 9.2m |
| Height to bottom of bucket: | 7.2m |
| Horizontal Outreach: | 4.4m |
| Bucket Capacity: | 136/200kg |
| Crane Jib: | 660kg |
| Bucket Dimensions: | 0.61×1.07×1.07m |
| Basket Rotation: | Fixed |
| Insulation Rating: | Non |
| Minimum GVM: | 3,500kg |
| Style |
EWP |
|---|---|
| Size |
Light Duty |
| Height |
8m to 13m |
| Condition |
New |
